WHEN TECHNOLOGY MEETS DESIGN

DS Mizar


Open Design

Thanks to the new open configuration, dimensions are no longer a problem. DS Mizar allows the scanning of any impression, dental model with or without articulator – which can be placed quickly and easily.

Reliable

DS Mizar and its acquisition software have been completely developed in-house allowing perfect compatibility and great reliability.

Smart & Intuitive

Even the most complex multiple acquisitions can be easily performed, thanks to a fast and intuitive interface.

Plug & Play

Supplied with DentalCad software, pre-installed proprietary EGS software and an integrated PC, DS Mizar is completely Plug & Play. Only a monitor and a mouse are required to use the scanner.

Complete Scanning Strategy

The selective scanning of gums, abutments, bridges, antagonists, wax-ups, impressions, implants and check-bites can be easily achieved. Furthermore, DS Mizar has been set up to allow direct scanning of dental models held in articulation by a large number of articulators on the market.

AVAILABLE COLORS

White, Special Edition Mondrian and Black

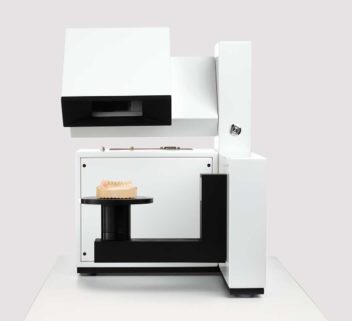

DSMizar white front view

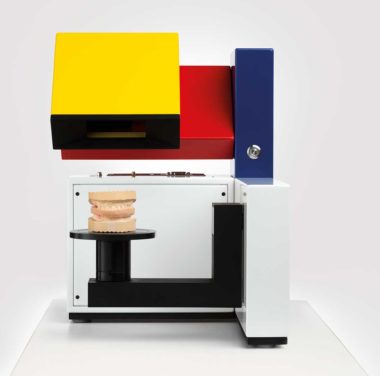

Special Edition

Mondrian

The primary colors capture the essence of the DS Mizar Mondrian edition. An innovative 3D scanner inspired by Piet Mondrian’s paintings and highlighting the union of design and technology.

IMPRESSION SCANNING KIT FOR COMPLETE DIGITAL WORKFLOW

Accessories


HIGH PERFORMANCE

Technical Specifications


3D Scanning Technology


Camera Resolution


Interface


Light Source


3D Acquisition Volume (WxDxH)


Accuracy


Input/Output Formats


Size (WxDxH)


Weight


Rotary stage


CPU


GPU


SSD


Memory


Input/Output


OS


Release Date

Structured Light


1.3 Megapixels


USB 3.0


LED, 100 ANSI-lumens – Blue Light


90mm x 80mm x 55mm


0.010 mm


STL, PLY, OBJ, ASC


275 x 465 x 450 mm


19 kg


2 Axis Movement (Rotation, Tilting)


7th Generation Intel “Core” series i7 7700 3.6 Ghz


Nvidia “GeForce” GT 730 2GB DDR3


256 GB SATA


16 GB RAM DDR3. Memory Speed 1600 Mhz


1 HDMI, 1 DVI-D, 4 USB 3.0, Ethernet 10/100/1000 Mbps, WiFi 802.11n


Windows 10 Pro – 64 bit


2019


Certifications and Metrological Test

DS Mizar complies with all safety requirements and standards EN 61010-1:2010 and EN 61326-1:2013.
