Structured Blue LED Light

Accuracy & Speed



By projecting a pattern of light on the model and analyzing the deformation of the light on the surface edges, the model geometry is calculated.

Accuracy & Reliability

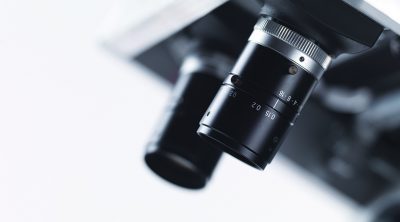

Manufacturing choices of highest quality



EGS develops every component, maximizing the quality and ensuring complete control.

Plug & Play

Direct and easy to use

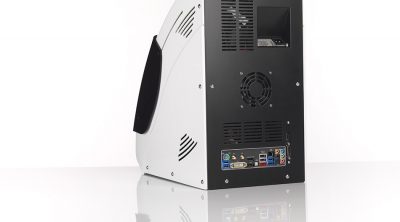

DScan, thanks to the integrated PC installed inside the case, it requires only a mouse and a monitor to be operational: the “DentalCad” software is already preinstalled.

Auto Calibration

A smart and automated system

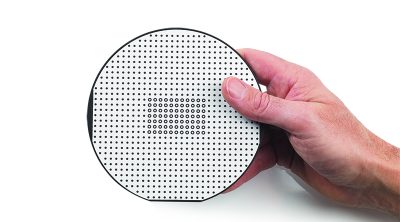

Thanks to its special plate, the calibration of the optics and axis is done automatically in 5 minutes.

OTHER FEATURES

SOLID

Thanks to its low weight and small size, DScan is suitable for every laboratory.

PRECISE & RELIABLE

Up to 15 microns, tested in metrological environment. Mechanical and electronic components of the highest quality.

EASY TO USE

Supplied with DentalCad and an integrated PC, DScan is fully Plug & Play. Only a monitor and a mouse are required to use the scanner.

OPEN SYSTEM

Data can be exported to common formats to be read by any CAD / CAM system.

DScan FAST & RELIABLE

0

SINGLE DIE

0

TOTAL MODEL

0

MULTIPLE DIES

TECHNICAL SPECIFICATIONS




3D scanning Technology

Camera Resolution

Interface

Light Source

Rotary Stage

3D acquisition Volume (WxDxH)

Accuracy

Input/Output Formats

Size (WxHxD)

Weight

3D scanning of the verticulator

CPU

GPU

SSD

Memory

Input/Output



OS

Acquisition Speed

Structured Light

1.3 Megapixels

USB 2.0

LED, 100 ANSI-lumens – Blue Light

2 axis movement (rotation, tilting)

90mm x 80mm x 55mm

0.015 mm

STL, PLY, OBJ, ASC

250mm x 450mm x 450mm

16 kg

Yes

6th Generation Intel “Core” series i7 6700 3.4 Ghz

Nvidia “GeForce” GT 730 1GB DDR3

256 GB SATA

16 GB RAM DDR3. Memory Speed 1600 Mhz

1 HDMI, 1 DVI-D, 1 DisplayPort, 6 USB 3.0, Ethernet 10/100/1000 Mbps, WiFi 802.11 a\b\g\n\ac

Windows 10 Pro – 64 bit

12 fps (frame per second)

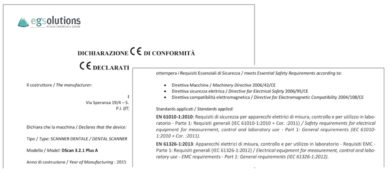

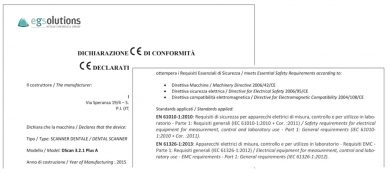

CERTIFICATION AND METROLOGICAL TESTS
