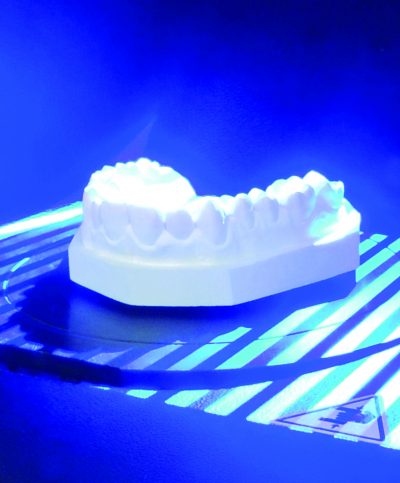

Customizable Acquisition Strategies

With the “inplace” acquisition strategy, it is possible to keep track of the position of each tooth: the 5 position “multidie” strategy allows to accurately scan many teeth at a time. abutments, bridges, antagonists, wax-ups, impressions & implants.

High Accuracy

DScan offers maximum precision and accuracy, acquiring even the smallest details, allowing an extremely detailed reconstruction and offering powerful tools for cloud point management. Up to 10 microns, tested in metrological environment.

Open System

DScan works with open and standard formats, allowing the individual components of the product to be used together with third-party products that support the same formats. The data can be exported in the most common formats to be read by any CAD/CAM system.

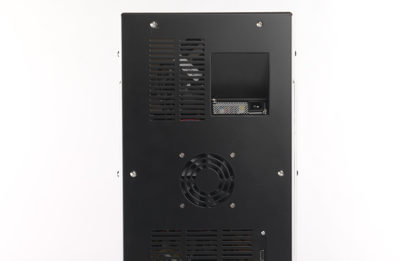

Plug & Play

Supplied with DentalCad software, the pre-installed EGS proprietary software and an integrated PC, DScan is fully Plug & Play. Only a monitor and a mouse are required to use the scanner.

OTHER FEATURES

TOP PERFORMANCE

With the latest generation of internal components, DScan 4 achieves 50% higher performance than the previous version.

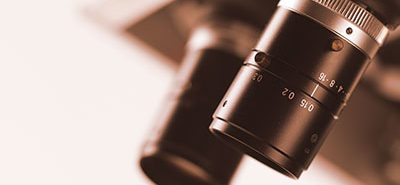

NEW OPTICS

Most sensitive and high-precision cameras with USB 3.0 interface, thus capturing 25fps.

CUSTOMIZABLE

New eye-catching design 100% customizable to suit your needs.

MAXIMUM RELIABILITY

High quality mechanical and electronic components.

DScan FAST & RELIABLE

0

SINGLE DIE

0

TOTAL MODEL

0

MULTIPLE DIES

COMPLETE SCANNING STRATEGY

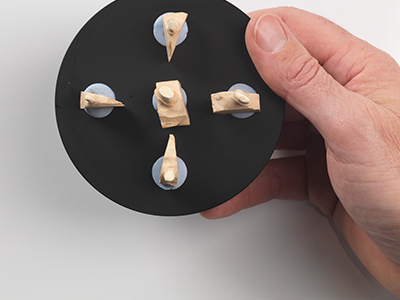

MULTI DIE SCAN

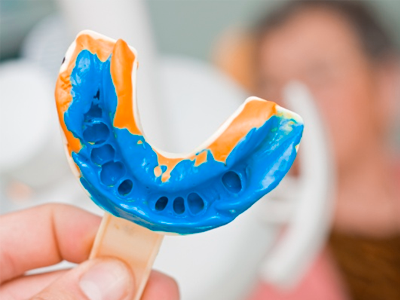

IMPRESSION SCAN

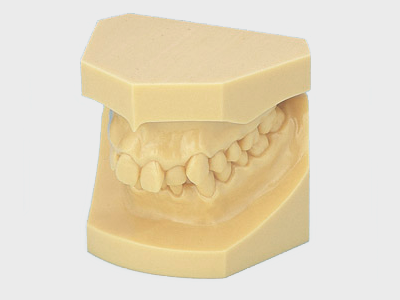

MODELS IN OCCLUSION

TECHNICAL SPECIFICATIONS


3D scanning Technology

Camera Resolution

Interface

Light Source

Rotary Stage

3D acquisition Volume (WxDxH)

Accuracy

Input/Output Formats

Size (WxHxD)

Weight

3D scanning of the verticulator

CPU

GPU

SSD

Memory

Input/Output



OS

Acquisition Speed

Structured Light

1.3 Megapixels

USB 3.0

LED, 100 ANSI-lumens – Blue Light

2 axis movement (rotation, tilting)

90mm x 80mm x 70mm

0.010 mm

STL, PLY, OBJ, ASC

250mm x 450mm x 450mm

21 kg

Yes

7th Generation Intel “Core” series i7 7700 3.6 Ghz

Nvidia “GeForce” GT 730 2GB DDR3

256 GB SATA

16 GB RAM DDR3. Memory Speed 1600 Mhz

1 HDMI, 1 DVI-D, 4 USB 3.0, Ethernet 10/100/1000 Mbps, WiFi 802.11n

Windows 10 Pro – 64 bit

25 fps (frame per second)

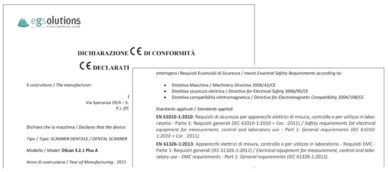

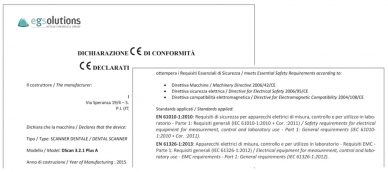

CERTIFICATION AND METROLOGICAL TESTS

Discover The Features Of DScan 4
