ARTEC 3D SCANNERS FEATURES

FLEXIBLE & PORTABLE

High precision tools for scanning 3D freehand.



Artec 3D Scanners are similar to a video camera which captures in 3D. Simply turn the scanner around the object to be recorded. Artec 3D Scanners are used in countless industries for various purposes. Automotive, medicine, manufacturing,

heritage preservation, computer graphics, design, education,

reverse engineering, architecture and quality control are just a few industries where this technology is becoming indispensable.

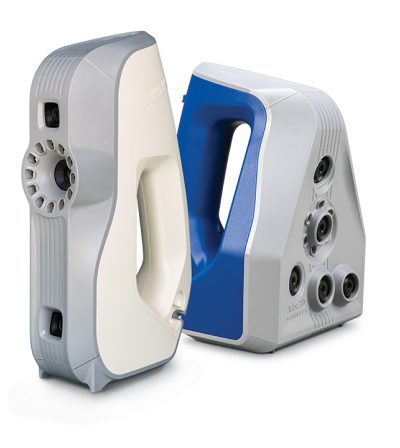

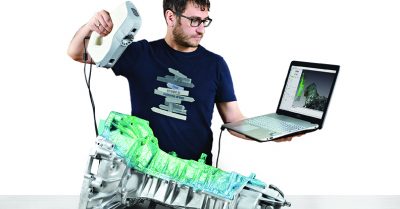

ARTEC EVA

Artec Eva is the ideal choice for making a quick, textured

and accurate 3D model of medium sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, in high resolution and vibrant color, which allows for almost unlimited applications. Light, fast and versatile, it is the most popular Artec scanner and a market leader in handheld 3D scanners.

ARTEC SPIDER & SPACE SPIDER

A new and enhanced precision instrument for CAD users and engineers, Artec Space Spider is perfect for capturing small objects or intricate details of large objects with steadfast accuracy and brilliant color. Ideal for scanning objects such as molding parts, PCBs, keys, coins or even a human ear and export the final 3D model to CAD software. Space Spider offers almost unlimited possibilities in areas such as reverse engineering, quality control, product design and manufacturing.

ARTEC STUDIO

Software for professional 3D scanning and data processing. The new release of Artec Studio brings you a whole new level of automated features, designed with speed and usability in mind. Along with the now streamlined advanced features for maintaining total control over your 3D data, you will also have a full set of new tools to make your workflow easier and faster, without ever compromising on accuracy.

COMPARISON TABLE


Feature

Eva

Space Spider & Spider


3D Resolution

3D point accuracy

3D accuracy over distance

Warm up period for achieving maximum accuracy

Colors

Texture resolution

Light source

Working distance

Linear field of view, HxW @ closest range

Linear field of view, HxW @ furthest range

Angular field of view, H?W

Video frame rate

Exposure time

Data acquisition speed

Multi core processing

0.5 mm

0.1 mm

0.03% over 100 cm





 24 bpp

1.3 mp

flash bulb (no laser)

0.4 – 1 m

214 x 148 mm

 536 x 371 mm

 30 x 21°

16 fps

0.0002 sec.

2 mln points / sec.

Yes

0.1 mm

0.05 mm

0.03% over 100 cm

Space Spider: 3 min

Spider: 30 min

24 bpp

1.3 mp

blue LED

0.17 – 0.35 m

90 x 70 mm

 180 x 140 mm

 30 x 21°

7.5 fps

0.0005 sec.

1 mln points / sec

Yes

OUTPUT FORMATS

3D formats



Formats for measurements

OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB

CSV, DXF, XML

OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB

CSV, DXF, XML

COMMON SPECIFICATIONS

Weight

Dimensions, HxDxW

Power consumption

Interface

Processing capacity

0.85 Kg

262 × 158 × 63 mm

12V, 48W

1 × USB 2.0, USB 3.0 compatible

40 mln triangles / 1 GB RAM

0.85 Kg

190 × 140 × 130 mm

12V, 24W

1 × USB 2.0, USB 3.0 compatible

40 mln triangles / 1 GB RAM

REQUIREMENTS

Processor

Memory



Videocards



OS

Free disk space

Intel I5 or I7

12 GB

NVIDIA or AMD

Recommended: NVIDIA GeForce 400 Series or higher, at least 1 GB of memory

Windows 7, 8, 10 – x64

300 MB for installation

Intel I5 or I7

18 GB

NVIDIA or AMD

Recommended: NVIDIA GeForce 400 Series or higher, at least 1 GB of memory

Windows 7, 8, 10 – x64

300 MB for installation


Not supported: Windows XP, Windows Vista, 32-bit OS, Intel graphics cards, AMD FirePro M6100 Fire GL V

Not recommended: Xeon or AMD processors, NVIDIA SLI or AMD CrossFire configurations, NVIDIA Quadro series

EGS is an authorized reseller of Artec 3D products. Based in Luxembourg, Artec 3D manufactures handheld and portable 3D scanners since 2007. Know more about EGS and Artec 3D partnership here

For More Information on Artec 3D Scanners
