Accuracy & Speed

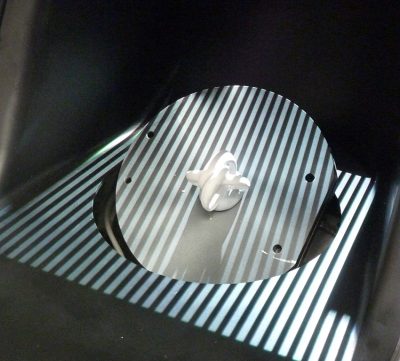

By projecting a pattern of light on the model and analyzing the deformation of the light on the surface edges, the model geometry is calculated.

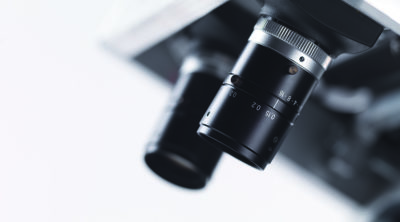

Maximum Reliability

Manufacturing choices of highest quality.

EGS develops every component, maximizing the quality and ensuring complete control.

Plug & Play

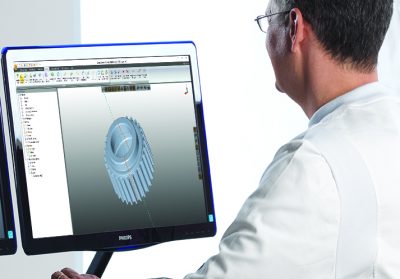

Supplied with Leios for Makers and integrated PC, JScan does not need any initial configuration.

Only a monitor and a mouse are required to use the scanner.

Automatic Calibration

Thanks to its special plate, the calibration of the optics and axis is done automatically in 5 minutes.

OTHER FEATURES

CUSTOMIZABLE

Complete freedom of choice: customize your hardware and / or software product in the way that best meets your needs.

PRECISE

Up to 15 microns, tested in metrological environment.

RELIABLE

Mechanical and electronic components of the highest quality.

EASY TO USE

Suitable for both experienced users and those using this technology for the first time.

OPEN SYSTEM

Data can be exported to common formats to be read by any CAD / CAM system.

TECHNICAL SPECIFICATIONS


3D scanning Technology

Camera Resolution

Interface

Light Source

Rotary Stage

3D acquisition Volume (WxDxH)

Accuracy

Input/Output Formats

Size (WxHxD)

Weight

3D scanning of the verticulator

CPU

GPU

SSD

Memory

Input/Output



OS

Acquisition Speed

Structured Light

1.3 Megapixels

USB 3.0

LED, 100 ANSI-lumens – Blue Light

2 axis movement (rotation, tilting)

90mm x 80mm x 55mm

0.010 mm

STL, PLY, OBJ, ASC

250mm x 450mm x 450mm

16 kg

Yes

6th Generation Intel “Core” series i7 6700 3.4 Ghz

Nvidia “GeForce” GT 730 1GB DDR3

256 GB SATA

16 GB RAM DDR3. Memory Speed 1600 Mhz

1 HDMI, 1 DVI-D, 1 DisplayPort, 6 USB 3.0, Ethernet 10/100/1000 Mbps, WiFi 802.11 a\b\g\n\ac

Windows 10 Pro – 64 bit

25 fps (frame per second)

CERTIFICATION AND METROLOGICAL TESTS
