Leios is an easy, fast, powerful and convenient software to switch from 3D scanning to CAD, which makes the processing of 3D scans and the editing of triangular meshes as easy as ever.

With Leios it is possible to acquire data from any type of 3D scanner, to transform the point cloud into a mathematical NURBS model in an easy and fast way with a complete control of each phase and to analyze the results with powerful control tools.

Simplified Workflow

Leios, EGS’ proprietary reverse engineering software, offers numerous benefits such as optimized workflow:

  • Scan Data
  • Mesh Elaboration
  • Mesh modeling
  • Reconstruction by Fitting
  • Surfacing and Inspection
  • Export
Scanner Integration

The direct integration between the best 3D scanners on the market and dedicated tools allow rapid optimization of point and mesh clouds and full support for textures and huge sets of raw data.

One-click procedures optimize your point and mesh clouds for CAD processing and export your surfaces to IGES and STEP, with direct integration with most CAD solutions on the market.

The new 2D sketc function allows direct editing of sections in arcs, lines, NURBS curves to create precise profiles. Leios2 is the perfect link between the scanner and the CAD of your choice.

Modeling Tools

Add

Add material to the mesh by controlling the area of influence and the density of added material.

Remove

Remove material from the mesh by checking the influence area and weight of the chisel.

Smooth

Smooth the entire mesh, a selection, or locally with a brush.

Freeform deformation

Deform the mesh dynamically using an elliptical tool.

Deformation by grid

Deform the mesh using control points ordered by grid, allowing precise deformation of the model.

Edge optimization

Optimize and reconstruct the damaged edges on the mesh, priceless when working with mechanical parts.

GET MORE

Other Features


Reconstruction by Fitting

Identification of character lines, dissection in regions and identification of curves, fast and precise reconstruction of analytical surfaces.

Control & Surfacing

Automatic and semi-automatic reconstruction with NURBS patches, accurate continuity analysis on curved surfaces.

Hardware Optimization

Leios is optimized for the latest cutting edge technology the market provides.

Faster Time-To-Market Approach

Wizard approach dramatically shortens time to market, providing one-click functions for the most common uses.

Gallery

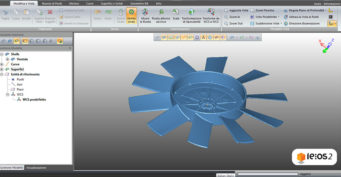

Fan 3D model example using Leios software

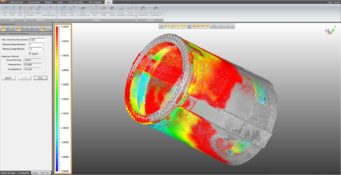

Leios 3D model showing color map on surface point cloud

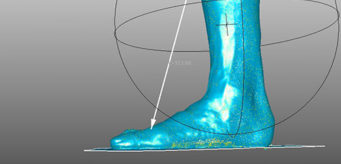

leios software screenshot leg 3d model
Leios screenshoot - 2003 Leios launch

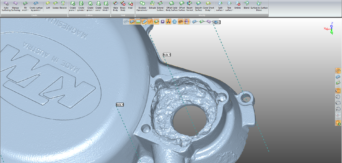

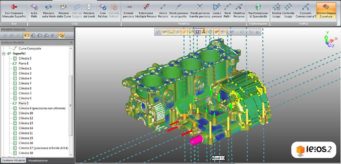

leios software screenshot manufacturing part detail

WATCH OUR INDUSTRIAL TUTORIALS AND LEARN MORE

Industrial Video Tutorials


Learn how to use Leios

Do you want to learn about other Leios features? Watch more video tutorials on our YouTube Channel.

Frequently Asked Questions

Find here the answers to the most common asked questions

FAQ Leios


How do I install the demo?

To install the demo of Leios just follow these few simple steps:

  1.  Download Leios 2 installer from the link on email received after submission;
  2.  During Leios 2 installation, choose “Keycode Protection” option when asked;
  3.  At the end of the installation procedure, click with the right mouse button on Leios icon on Desktop and select “Run as administrator”
  4.  Then navigate the main manu to the Preferences > License Registration command;
  5.  In the emerging window locate the “hardware fingerprint” information and send it to service.eng@egsolutions.com
  6. EGS support will send you the activation key.
What are “cloud points” and “.STL files”?

The points cloud is the resulting product from the scan: is a set of millions of points arranged and measured in a 3D environment. The scanner is able to capture millions of points in few seconds. The final scan can be viewed using special software that joins the points by forming millions of triangles connected: the .STL file.

What does “step by step” mean?

It is our philosophy because we have created Leios software step by step. It is always step by step that we keep developing and improving it to keep up with the times and the needs of users. This is the reason why the software is clear and easy to use and accompany the user during every stage of the process via a “step by step” path, the strength of our methology.

Is it possible to make measurements of the imported models?

Yes, it is possible. In the info menu you can find some measuring instruments (distance between points, angular measurements, volume, surface, etc.)

How is the texture managed in Leios?

You can import and display textured models.

You can not keep the texture if you make substantial changes on the mesh (i.e. extrusions, closed holes, etc.)

How can I select the model?

Check in the “select mode” (by default in on the left above the menu “management model”) if the correct selector [point cloud – mesh – surfaces] is turned on.

How can I zoom in/out the model?

To zoom in/out the model you need to use the mouse scroll wheel.

How can I shift the model?

To shift the model you need to:

Hold down the CTRL on your keyboard

Hold down the mouse scroll wheel

Move the mouse.

How can I rotate the model?

Hold down the CTRL on your keyboard

Hold down the left mouse button

Move the mouse.

Where should I insert the dongle with Leios license?

The dongle must be plugged into a USB 2.0 (black port).

Which are the PC recommended requirements for installing Leios?

CPU: Intel Core Quad 9300 (or higher), AMD Phenom X4 or higher

RAM: 8 GB

GPU: NVidia Quadro o ATI fire GL

Windows 7 a 64bit

Which are the PC minimum requirements for installing Leios?

CPU: Intel Core Duo T2300, AMD Alon XP X2 3800+

RAM: 2 GB

GPU: NVidia 6x, AMD “x” series

Windows XP Professional SP2

Which are the formats that can be exported from Leios?

Point cloud formats: ASCII vertex-Kreon Polygonia

Mesh formats: STL, PLY, OBJ, VRLM/X3D

CAD formats: SAT, IGES, STEP, DXF

EGS property formats: QMH, RVE, MCE

Which are the formats that can be imported in Leios?

ASCII Vertex files(*.asc, *.txt, *.dat, *.asd)

3D3 files (**3d3)

Binary or ASCII STL files (*.ply)

PLY polygon files

Wavefront object files (*obj) [also OBJ with texture]

Kreon Polygonia files(*cwk)

Minolta Element format files (*wd)

Open Technologies format files (*opt)

Scansystems files (*scs)

ACIS files (*.sat)

IGES files (*igs)

STEP files (*.stp)

OPTON files (*.v3v)

EGS Leios mesh files (*qmh)

EGS Leios interchange format for ordered data (*mce)

Do you need more help?

If you cannot find answers you were looking for here you can send us a message with your questions or comments at

sales-team@egsolutions.com
