Artec 3D Scanners


Artec Spider and Eva handheld Scanners

Portable & Handheld

High precision handheld 3D scanners. Artec 3D Scanners are similar to a video camera which captures in 3D. Simply turn the scanner around the object to be recorded. Artec 3D Scanners are used in countless industries for various purposes: automotive, medicine, manufacturing, heritage preservation, computer graphics, design, education, reverse engineering, architecture and quality control are just a few industries where this technology is becoming indispensable.

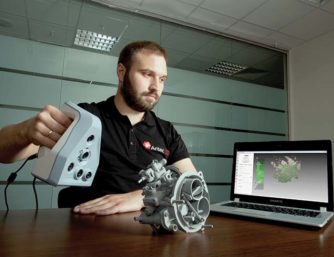

man using artec eva to scan gearbox

Artec EVA

Artec Eva is the ideal choice for making a quick, textured and accurate 3D model of medium sized objects such as a human bust, an alloy wheel, or a motorcycle exhaust system. It scans quickly, in high resolution and vibrant color, which allows for almost unlimited applications. Light, fast and versatile, it is the most popular Artec scanner and a market leader in handheld 3D scanners.


man scanning object using Artec Spider 3D scanner

Artec Spider & Space Spider

A new and enhanced precision instrument for CAD users and engineers, Artec Space Spider is perfect for capturing small objects or intricate details of large objects with steadfast accuracy and brilliant color. Ideal for scanning objects such as molding parts, PCBs, keys, coins or even a human ear and export the final 3D model to CAD software. Space Spider offers almost unlimited possibilities in areas such as reverse engineering, quality control, product design and manufacturing.


Artec Studio Software

Artec Studio

Software for professional 3D scanning and data processing. The new release of Artec Studio brings you a whole new level of automated features, designed with speed and usability in mind. Along with the now streamlined advanced features for maintaining total control over your 3D data, you will also have a full set of new tools to make your workflow easier and faster, without ever compromising on accuracy.

CHECK OUT THE DIFFERENCES BETWEEN SCANNERS

Comparison Table


Feature


3D Resolution


3D point accuracy


3D accuracy over distance


Colors


Texture resolution


Light Source


Working Distance


Linear field of view, HxW @ closest range


Linear field of view, HxW @ furthest range


Angular field of view, HxW


Video Frame Rate


Exposure Time


Data acquisition speed


Multi core processing

Eva


0.5 mm


0.1 mm


0.03% over 100 cm


 24 bpp


1.3mp


flash bulb (no laser)


0.4 – 1 m


214 x 148 mm


536 x 371 mm


30 x 21°


16 fps


0.0002 sec.


2 mln points / sec.


Yes

Space Spider & Spider


0.1 mm


0.05 mm


0.03% over 100 cm


 24 bpp


1.3mp


blue LED


0.17 – 0.35 m


90 x 70 mm


 180 x 140 mm


 30 x 21°


7.5 fps


0.0005 sec.


1 mln points / sec


Yes

Output Formats


3D formats


Formats for measurements

OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB


CSV, DXF, XML

OBJ, PLY, WRL, STL, AOP, ASCII, Disney PTEX, E57, XYZRGB


CSV, DXF, XML

Common Specifications


Weight


Dimensions, HxDxW


Power consumption


Interface


Processing capacity

0.85 Kg


262 × 158 × 63 mm


12V, 48W


1 × USB 2.0, USB 3.0 compatible


40 mln triangles / 1 GB RAM

0.85 Kg


190 × 140 × 130 mm


12V, 24W


1 × USB 2.0, USB 3.0 compatible


40 mln triangles / 1 GB RAM

Requirements


Processor


Memory


Videocards


OS


Free disk space

Intel I5 or I7


12 GB


NVIDIA or AMDRecommended: NVIDIA GeForce 400 Series or higher, at least 1 GB of memory


Windows 7, 8, 10 – x64


300 MB for installation

Intel I5 or I7


18 GB


NVIDIA or AMDRecommended: NVIDIA GeForce 400 Series or higher, at least 1 GB of memory


Windows 7, 8, 10 – x64


300 MB for installation


Not supported: Windows XP, Windows Vista, 32-bit OS, Intel graphics cards, AMD FirePro M6100 Fire GL V

Not recommended: Xeon or AMD processors, NVIDIA SLI or AMD CrossFire configurations, NVIDIA Quadro series


EGS is an authorized reseller of Artec 3D products

EGS is an authorized reseller of Artec 3D products. Based in Luxembourg, Artec 3D manufactures handheld and portable 3D scanners since 2007. Know more about EGS and Artec 3D partnership here
